Cargo Compartment Walkthrough

Ship Structure

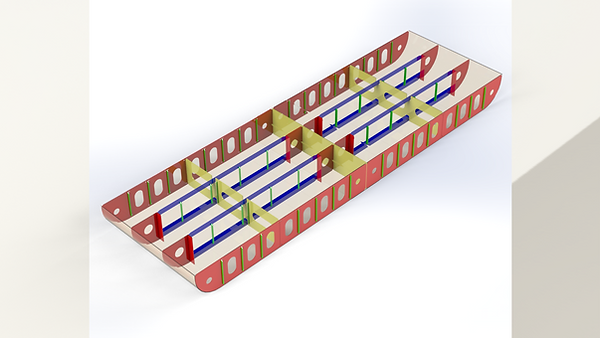

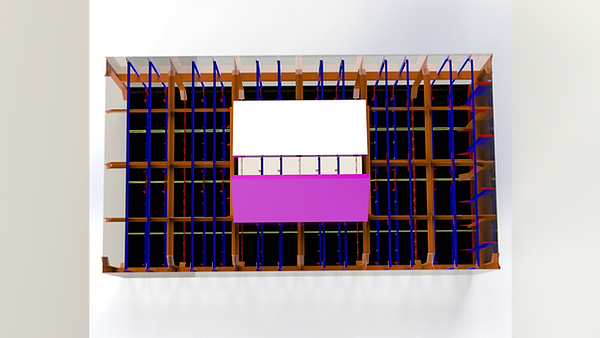

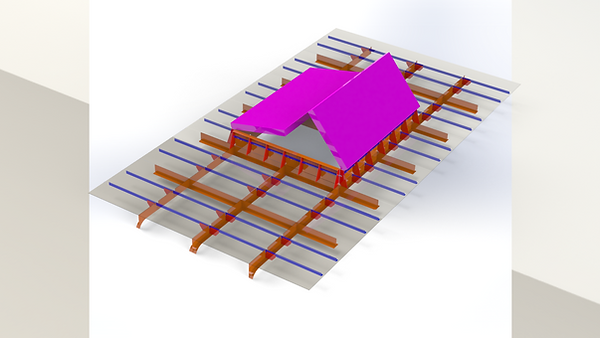

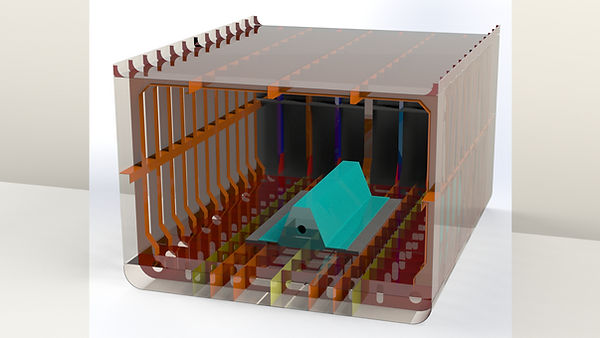

3D model of a general cargo ship compartments with a transverse structure system and a bottom section with a longitudinal structure system, I have designed a cargo compartment with a hatch cover and the engine room compartment for the transverse system and a solo longitudinal system bottom, at the end of the project a walkthrough video for the 2 compartments was created and exploded view video for the longitudinal system bottom.


Engine Room Walkthrought

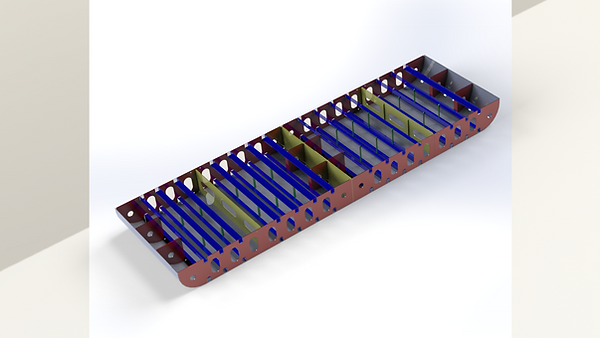

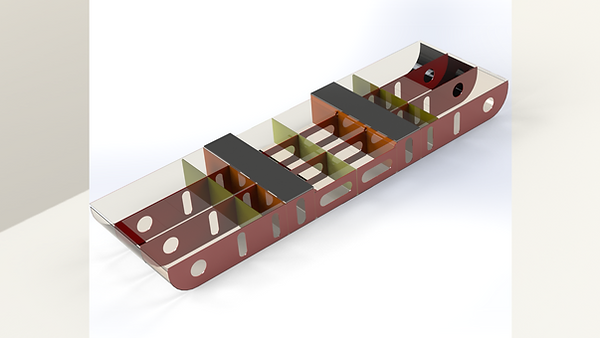

Double Bottom Exploded View
